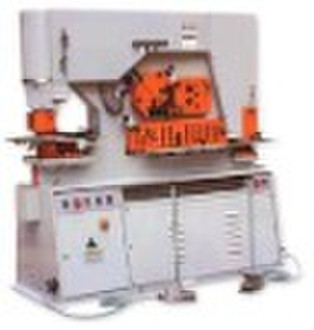

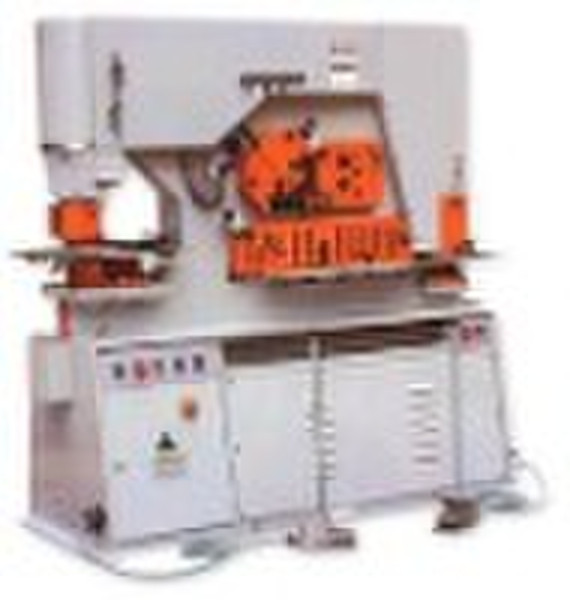

Q35Y Series Hydraulic Ironworker

Q35Y Series Hydraulic Ironworker/Hydraulic Ironworker Technical Data: Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Pressure(Ton) 55 75 110 140 Max. cutting thickness(mm) 16 20 25 30 Plate strength(N/mm2) ≤450 ≤450 ≤450 ≤450 Cutting angle(degree) 7° 8° 8° 8° Shearing size of one stroke(mm) 16*2500 8*400 20*330 10*480 25*330 16*600 30*355 20*600 Ram stroke(mm) 80 80 80 80 Number of strokes(/minute) 8 8 6 6 Throat depth(mm) 300 355 400 600 Punching thickness(mm) 16 20 25 26 Max. Punching diameter(mm) 25 30 35 38 Power of main motor(kw) 4 5.5 7.5 11 Overall dimensions L*W*H(mm) 1640*730*1770 1860*800*1900 2355*960*2090 2680*1040*2300 Weight of machine(kg) 1600 2000 4800 6800 Round Bar 45 50 60 65 Square Bar 40*40 50*50 50*50 55*55 Equal Angle 90°Shearing 125*125*12 140*140*12 160*160*14 180*180*16 45°Shearing 70*70*8 70*70*10 80*80*7 180*180*10 T-Bar 90°Shearing 120*120*12 140*140*12* 160*160*14 180*180*16 45°Shearing 60*60*8 70*70*10 80*80*10 80*80*10 Joist 126*74*5 160*86*6 200*102*9 280*124*10.5 Channel 126*53*5.5 160*60*6.5 200*75*9 280*86*11.5
