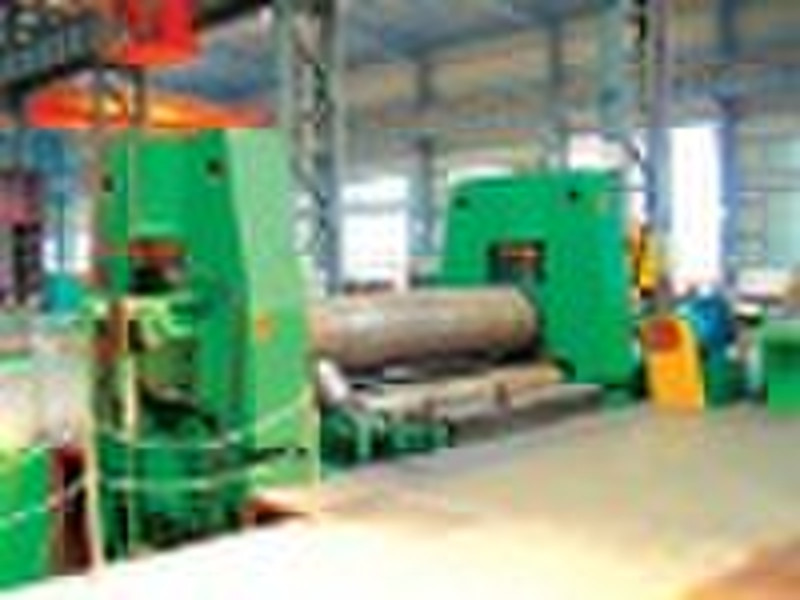

Three Roller Symmetrical rolling Machine

Function and Features:HLW11NC series Three Roller Symmetrical rolling Machine, the vertical movement of its upper roller is hydraulically driven with synchronization accuracy of +/-0.20mm, the displacement is shown by digital display which is easy for observation. The two lower rollers are mechanically driven. The machine is high-precision medium and big rolling machine. HLW11 series Three Roller Symmetrical mechanical rolling Machine, the upper roller do vertical movement in the central symmetrical position of the two lower rollers, it is driven by screw rods and worm rods. The two lower rollers do rotation movement, through output gear of reducer and roller gear, provide torque for plate rolling.Technical parameters: Model Max.rolling thickness (mm)Max Plate width (mm) Diameter of upper roller (mm) Main motor power (kw)HLW11NC-25x200025200032015HLW11NC-25x250025250038015HLW11NC-30x200030200036015HLW11NC-30x250030250042022HLW11NC-30x300030300045030HLW11NC-40x300040300054037HLW11NC-50x300050300058045HLW11NC-60x300060300066055HLW11NC-70x300070300071055HLW11NC-80x300080300077075HLW11NC-90x300090300082075HLW11NC-100x3000100300086090HLW11NC-110x3000110300090090HLW11NC-120x30001203000950110
